Infrared Interactive Touch Screen Whiteboard Recordable Smartboard
Smart board Recordable interactive flat panel for education
Main features:
-Android V8.0 / 9.0 + OPS (Windows)
-IR 20 Touches
-Middle Main Panel, 75” | 86”
-Sub-board, Optional White(Marker) & Nano Black(Chalk) Surface
-Record Writings Made on Sub-board as e-Content and Share by
Scanning QR Code -Miracast
How it works?

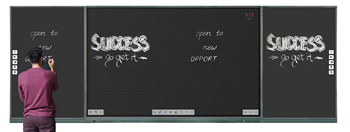

Left and right sub-boards with touch, connected with middle
interactive flat panel. For middle interactive flat panel, under
windows system, we can provide a software:
The software page is divided into two parts (left and
right).Software can record the writing contents made on Sub-boards
separately, and the writing contents can be shared by scanning QR
code. We can write and erase on sub-boards using chalk. When we
erase the writing contents on sub-boards, the writing contents of
records in the software will be erased at the same time.
Product Model | S86X6AIO-560 |
| Product size | 4010.9*1180.3*89mm |
Product Diagonal Size | 164.60” |
Main Display Size | 1964.9*1180.3*89mm |
Sub Blackboard Size | 1023*1180.3*30mm (each) |
Sub Blackboard Material | Surface: White Surface for Water Based Marker / Green Surface for
Chalk /Black Surface for Chalk Middle: Aluminum Honeycomb |
Main Display Parameters | Display Size | 1897(V)*1068(V)mm |
Pixel Size | 0.4935(H)mm*0.4935(V) mm |
Resolution | 3840*2160 |
Backlight Type | DLED |
Brightness | 450 cd/m2 |
Contrast Ratio | 3000:1 |
Refresh Frequency | 60Hz |
Color Depth | 1.07B (10bit) |
Color Gamut | 72% NTSC(Typ.) |
View Angle | 178°/178° |
Life Time | ≥50000h |
Speakers | (8Ω 15W)*2 Stereo |
Networks | WiFi 802.11 a/b/g/n/ac 2.4GHz/5GHz, LAN |
Main Display Touch Specification | Touch Technology | Infrared |
Touch Points | 20 points |
Inductive Object | Finger, Stylus and any other non-transparent objects |
Inductive Size | Diameter≥2mm |
Touch Resolution | 32768*32768 |
Touch Accuracy | ±1mm (≥90% Touch area) |
Response Time | ≤7ms |
Operating Life | More than 60,000,000 clicks |
System Support | Windows10/Windows8/Windows7/Windows XP/ Android/Linux/Mac OS
X/Chrome |
Touch Panel Glass | 4mm Tempered AG Glass (7 Mohs) |
| Android Version | Android V9.0 |
CPU | Cortex A55*4 1.5GHz |
GPU | Mali G52 |
RAM/ROM | 2+16GB / 3+32GB |
WiFi | 802.11 a/b/g/n/ac 2.4GHz&5GHz,LAN |
| Front USB (Type C)*1;Front HDMI IN*1;Front TOUCH USB (Type
B)*1;HDMI IN*2;USB2.0*2;TOUCH OUT (B Type)*1;COAX OUT*1;VGA IN*1;PC
AUDIO IN*1;EARPHONE OUT*1;MIC*1;RS232*1;RJ45 IN*1;OPS SLOT*1 |
| Power Cord*1; Remote Control*1;USB Extension Cable*1;Stylus*1;Water
Based Marker*3 (optional for Sub Blackboard Material- White
Surface). N/A for Green or Black Surface;Eraser*1;VESA Mount
Brackets (For Main Display)*1;Mount Brackets (For Sub
Blackboard)*1;Setscrews*1 |
Packing Size | Main Display: 216*28*134cm ( 1PKG) Sub Blackboard :117*109*10cm (1 PKG) |
NW | Main Display: 67.1Kg Sub Blackboard:17.5Kg (2 PCS) |
GW | 109.4Kg |
SEEKMIND Technology is a leading manufacturer for interactive touch
products whose
products cover interactive whiteboard, interactive flat panel,
touch display, advertising touch
display, conference touch display, projectors for education and
business applications.
SEEKMIND is located in Qingdao of China with its own 2000 square
meters factory and
300 square meters office which well equipped with a complete set of
facilities and strictly
dhering to the ISO9000 and QS9000 quality systems. SEEKMIND built a
professional R&D,
sales and service team which have brought a solid foundation and
leading technology
on interactive touch products.
SEEKMIND offers a full range of products and services to customer's
needs. Many of its
customers use it as an OEM/SKD supplier, while others require
existing regular items.
SEEKMIND's volume has grown steadily and robustly since the
beginning as it believes
"quality is life" and has faith in "Quality Started From Design".
Sincerely welcome customers
from home and abroad to cooperate with SEEKMIND to a glorious
future.
1. Q: Are you a manufacturer?
A: Yes, we mainly manufacture interactive whiteboard,Interactive touch
screen,Projector
and so on. We have our factory for producing interactive whiteboard
in Qingdao, Shandong
province, and OEM factory for producing interactive touch screen in
Guangdong Province.
2. Q: What's the warranty and service?
A: We provide OEM,ODM and customized service,3 years warranty for
whiteboard/touch frame,
1 year for others.
3: Q: MOQ,Delivery term,Payment term?
A: Our normal order MOQ is 1 piece, OEM MOQ is more than 100 pcs.
Delivery term: EXW,FOB,CNF,CIF.etc is no problem.
Payment term: T/T,Payoneer,Paypal .etc
4. Q: Whether to provide any teaching software?
A: Yes, we provide the free education software and update the
features timely.
5. Q: How to make the order?
A: Send detailed inquiry to us,then we will reply you with the
proforma invoice. Make the payment
after you confirm the PI. We ship the products by express or by sea
with 3-5 days upon to your
quantity after we receive the payment.Then you will get the cargoes
soon.
6. Q:What's the after-sales service?
A: 7 * 24 hours service consultation and technical guidance.
Modular designed hardware,
maintenance to be done without skilled technicians.All products
have maintenance reference
documents, and we can provide training for your maintenance
personnel. Provide 1% spare parts
for after-sales maintenance according to the purchase quantity. For
large quality issue,we arrange
special person to visit for after-sale maintenance.
